DESCRIPTION

Basic Info.

Model NO.	SVN-22Y2
Feature	Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance	0-9m
Sensor Size	1/3 inch
Remote Control	Without Remote Control
Backlight	off/Blc/Hlc/WDR
Awb	Auto/Manual
Sharpness	1-10 Steps
Language	Chinese/English....etc
Power Supply	AC220V
D-Zoom	1-10X
Frezz	Support
Image Sensor	1/3" Sony CMOS
OSD Menu	up; Down; Left; Right; Set Button
Brightness	1-20 Steps
Output Resolution	720p(50/60fps)
Output	VGA+CVBS
Effective Pixel	1305(H)* 977(V)
Input	CVBS(1000tvl)
Transport Package	Carton Packaging
Specification	CE, FCC
Trademark	OEM
Origin	Shenzhen, China
HS Code	8525801390
Production Capacity	50, 00PCS/Year

Product Description

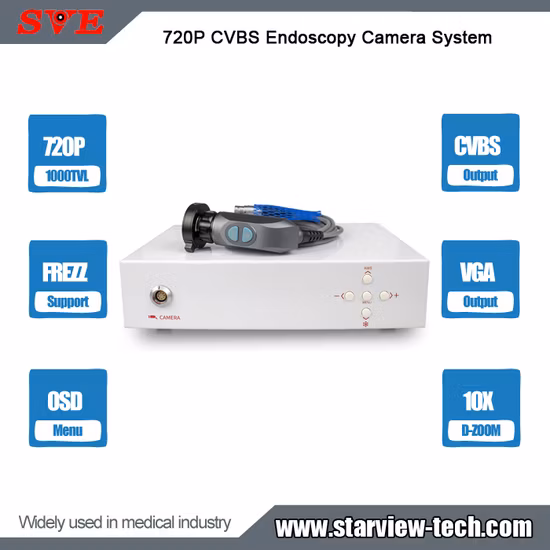

720 60fps CVBS Endoscope camera system

Introduction:
CVBS Endoscope camera system is fully functional endoscopy solutions of specifically designed for industrial medical .CVBS input,VGA/CVBS output,have control the menu and shortcut key
function,Widely used in medical industry.

Features:
1. SONY CMOS 720P
2. Support CVBS output
3. Support OSD menu
4. Support VGA output
Parameter:

INPUT	CVBS(1000TVL)
OUTPUT	VGA+CVBS
EFFECTIVE PIXEL	1305(H)x 977(V)
OSD MENU	UP,DOWN,LEFT,RIGHT,SET button
IMAGE SENSOR	1/3" Sony CMOS
OUTPUT RESOLUTION	720P(50/60fps)
BRIGHTNESS	1-20 steps
SHARPNESS	1-10 steps
BACKLIGHT	OFF/BLC/HLC/WDR
AWB	AUTO/MANUAL
FREZZ	SUPPORT
D-ZOOM	1-10x
TEMPERATURE	-30ºC~ 70ºC
LANGUAGE	CHINESE/ENGLISH....etc
POWER SUPPLY	AC220V

Appearance

Shortcut KeyAWB:Before use,point the lens at the white paper, press the
white balance button and wait for the white balance to adjust
FREEZE:can make the image to freeze
Operating InstructionsSET/UP/DOWN/LEFT/RIGHT:Five buttons,SET is enter to menu and confirm,UP/DOWN/LEFT/RIGHT is direction button.Shortcut keys can be set through the menu,including brightness and D-Zoom in/out.
